Qt Quick 3D - Cascaded Shadow Maps Example

Demonstrates cascaded shadow maps.

This example demonstrates how to use a DirectionalLight with cascaded shadow maps.

Let's have a look at the scene's QML code:

 View3D {
     id: view
     x: settings.viewX
     y: 0
     width: parent.width - settings.viewX
     height: parent.height
     camera: camera
     environment: SceneEnvironment {
         clearColor: "lightblue"
         backgroundMode: SceneEnvironment.Color
         antialiasingMode: SceneEnvironment.MSAA
         antialiasingQuality: SceneEnvironment.High
     }

     PerspectiveCamera {
         id: camera
         position: Qt.vector3d(458, 300, 515)
         eulerRotation: Qt.vector3d(-14, 19, 0)
         clipFar: settings.clipFar
     }

     DirectionalLight {
         visible: true
         castsShadow: true
         shadowFactor: settings.shadowFactor
         eulerRotation: settings.eulerRotation
         csmSplit1: settings.csmSplit1
         csmSplit2: settings.csmSplit2
         csmSplit3: settings.csmSplit3
         csmNumSplits: settings.csmNumSplits
         shadowMapQuality: settings.shadowMapQuality
         csmBlendRatio: settings.csmBlendRatio
         shadowBias: settings.shadowBias
         pcfFactor: settings.pcfFactor
         softShadowQuality: settings.softShadowQuality
         shadowMapFar: settings.shadowMapFar
         lockShadowmapTexels: settings.lockShadowmapTexels
     }

     Model {
         id: ground
         source: "#Cube"
         scale: Qt.vector3d(25, 0.01, 135)
         z: -5500
         materials: PrincipledMaterial {
             baseColor: "gray"
         }
         castsShadows: false
     }

     Node {
         id: shapeSpawner
         Component.onCompleted: {
             var conesAndCylinderTrio = Qt.createComponent("ConesAndCylinderTrio.qml")
             var z_pos = 0
             for (var i = 0; i < 25; i++) {
                 conesAndCylinderTrio.incubateObject(shapeSpawner, {
                                                     "z_positions": [
                                                             z_pos,
                                                             z_pos - 125,
                                                             z_pos - 250
                                                         ]})
                 z_pos -= 450
             }
         }
     }
 }

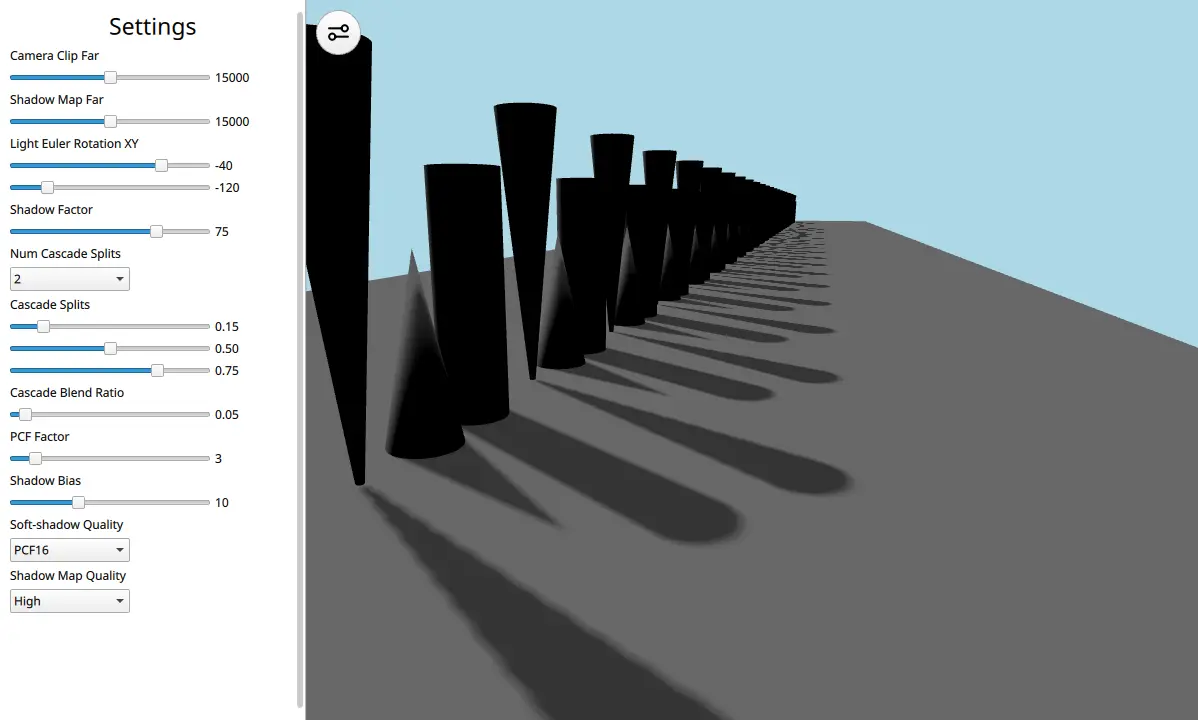

The scene consists of a DirectionalLight, a PerspectiveCamera, a floor Model, and a long array of cones and cylinder Models. This long array is laid out like this to show how cascades can help increase the graphical fidelity of the scene. With just one shadow map it will cause artifacts but with cascades these can be remedied. The DirectionalLight contains a lot of properties that are tweakable through a settings pane in the UI.

The reader is encouraged to see the Shadow Mapping article for more information on the different properties and to try out the example to see how they interact.

Example project @ code.qt.io
